Hydraulic Breaker | Side type | Top type | Box type

Box type

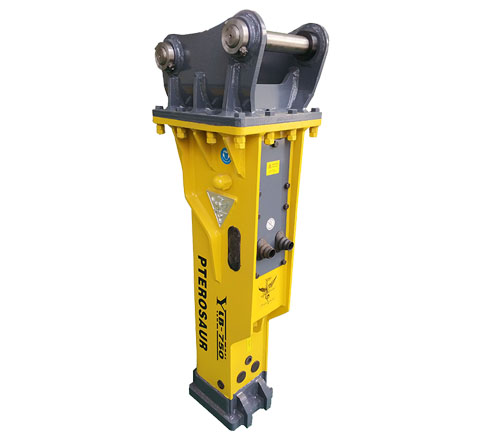

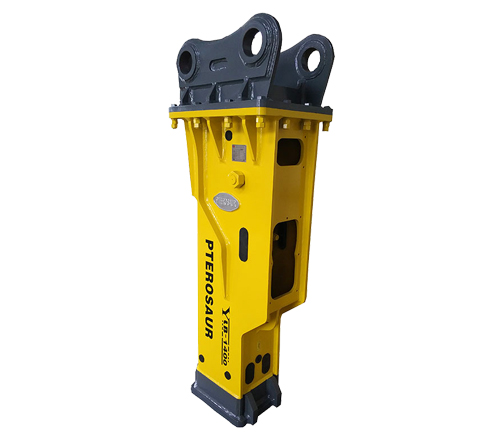

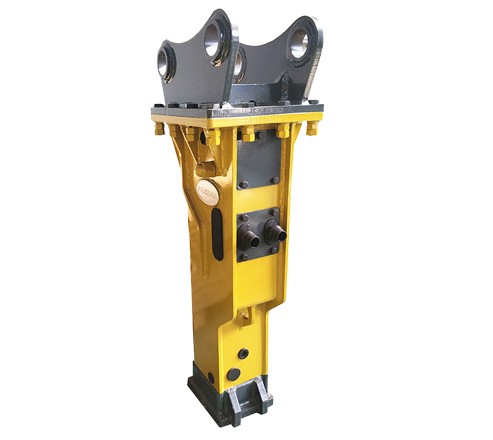

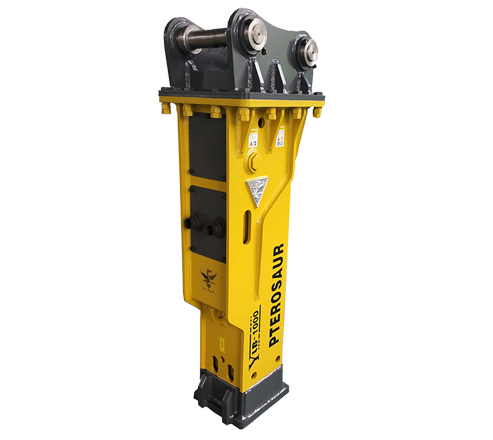

All types of high-quality Hydraulic Breaker can be manufactured, kindly please let us know your request. Pterosaur brand FURUKAWA system hydraulic breaker could cover all brands 25-30ton carrier. It is the same with FURUKAWA brand HB30G model hydraulic hammer. Low noise level, suitable for quietness place and cities work; Full closed bracket protects the main body

contact us:

Request a quote

Product Details

Industry solutions:

Specification	Unit	HB30G
operating weight	KG	2230
required oil flow	L/MIN	150-210
impact rate	BMP	300-450
working pressure	KG/CM2	210-230
rod diameter	MM	150
applicable carrier	TON	25-30
valve ass'y position	**	external

Hydraulic Breakers Technical Data:
Model No.	Operating Weight	Working Flow	Working Pressure	Impact Rate	Hose Diameter	Tool Diameter	Excavator Weight
	(kgs)	(L/min)	(bar)	(bpm)	(inch)	(mm)	(ton)
Light Type Hydraulic Breakers
YLB450	120	15-30	90-120	600-1200	1/2	45	0.8-3
YLB530	180	25-50	90-120	550-1000	1/2	53	2.5-4.5
YLB680	350	40-70	100-140	500-800	1/2	68	4-7
YLB750	435	50-90	120-150	450-800	1/2	75	6-9
YLB1000	860	80-120	160-180	350-700	3/4	100	11-16
Medium Type Hydraulic Breakers
YLB1350	1780	100-150	180-210	350-600	1	135	18-21
YLB1400	1825	130-170	190-220	350-500	1	140	20-26
YLB1500	2300	150-210	210-230	300-450	1 1/4	150	25-30
YLB1550	2850	170-220	220-240	300-450	1 1/4	155	28-35
Heavy Type Hydraulic Breakers
YLB1650	3560	200-260	230-250	250-400	1 1/4	165	30-40
YLB1750	3990	210-260	240-260	250-350	1 1/4	175	35-45

Note:

1. Each hammer with accessories: 2x chisels, 2x hoses, 1x Nitrogen gas bottle, 1x toolbox with necessary tools, 1x seal kits, and 1x manual book.

2. Delivery time: Usually within 7-10days after order confirmation and payment.

3. Warranty period: 18Months.

4. Payment terms: T/T payment 30% in advance and balance payment against the bill of lading.
