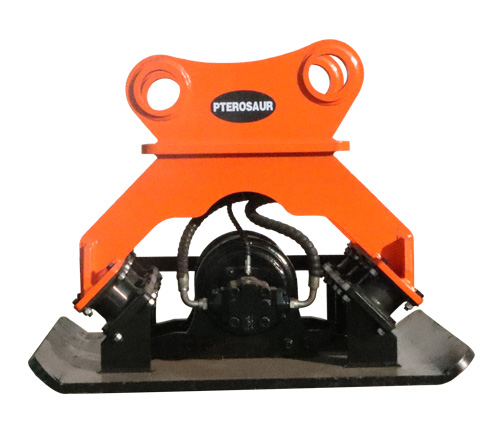

Machine-driven soil compactors are simple to use, efficient, and quick to work. Quick-coupling systems and common adapter plates can both accommodate hydraulic compactors. *Safe and quiet: When used in trenches, a compactor attachment reduces noise and improves safety because it eliminates the need for someone to stand directly in the work area. *Positioning is simple. Even in challenging terrain, productivity can be increased.
Product Details
Industry solutions:
| Hydraulic Plate Compactor: Excavator model or tonnage is needed. | ||||||
| Item/Model | Unit | BC02 | BC04 | BC06 | BC08 | BC10 |
| Suitable Excavator | ton | 1-3 | 4-9 | 11-16 | 17-23 | 24-30 |
| Power Of Impulse | ton | 3 | 6 | 10 | 15 | 15 |
| Maximum Vibration Frequency | r/min | 1800 | 1800 | 1800 | 1800 | 1800 |
| Working Flow | rpm | 25-40 | 45-75 | 85-105 | 120-170 | 120-170 |
| Working Pressure | bar | 100-130 | 100-130 | 100-130 | 120-180 | 120-180 |
| Weight | kg | 110 | 300 | 500 | 900 | 950 |
| Bottom Measurement | L*W, mm | 650*470 | 825*550 | 862*700 | 1100*900 | 1100*900 |
| Height | mm | 600 | 760 | 920 | 1060 | 1100 |
| Width | mm | 410 | 550 | 700 | 900 | 900 |
