Product Details

Product Information

Hydraulic crushing pliers pulverizers consist of a caliper body, a hydraulic cylinder, a movable cymbal, and a fixed cymbal. The external hydraulic system provides oil pressure to the hydraulic cylinder, allowing the movable shovel and fixed squeezing force of the hydraulic smashing tongs to be combined one at a time to achieve the smashing effect.

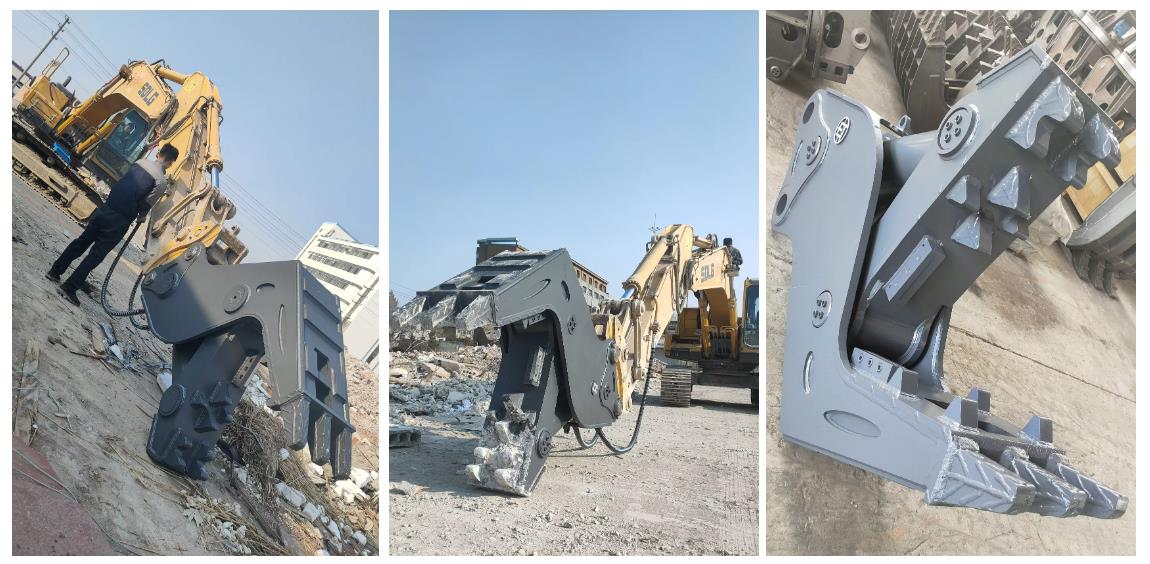

Hydraulic pulverizers are excellent excavator attachments for demolishing and recycling concrete materials from a variety of industries and applications.

1.connect the pin hole of the hydraulic smashing pliers to the pin hole of the front end of the excavator

2.connect the pipeline on the excavator with the hydraulic crusher

3.after the installation is completed,the crushing concrete block can be operated.

Model	BC06	BC08
Excavator Weight(Ton)	12-15	18-25
Working Press(Mpa)	31	31
Opening Size(mm)	600	850
Blade Length	350	510
Front Crushing Force(KN)	605	980
Middle Crushing Force(KN)	1340	1560
Weight(KG)	850	1900

Product features

Great Raw Material

HARDOX, NM400, Q355 Steel.

Precision Welding

All our workers have at least 15 years experience in welding field with mature technology. the products difficult to tear.

Imported Parts

Oil cylinder and blade. With longer service life.

Packing and Delivery

Standard Accessories:

*Hydraulic pulverizer*1 unit

*Hydraulic Oil Hoses*2 pcs

Packing:

1. Inner is stretch film

2. Outside is export wooden case

3. As per customer's request

Tips:

Tonnage and excavator model are important parameters for Hydraulic breaker selection

If you can not confirm the model to be install your excavator, please contact me in time, we can been in this field for more than 20 years with rich experience. We will provide reasonable suggestions for you. Let's keep the ball rolling.
