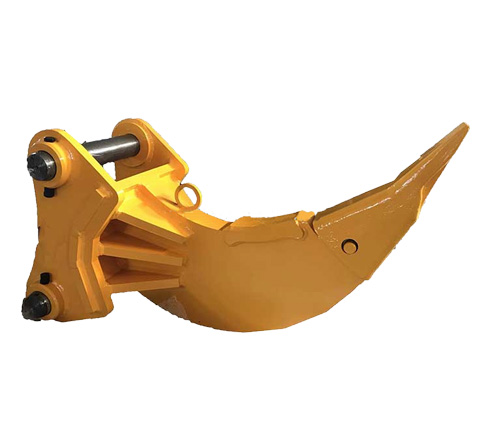

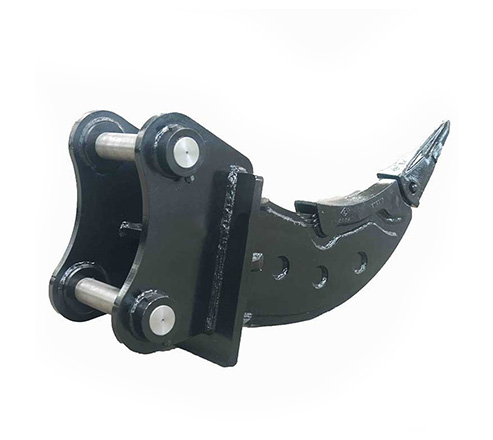

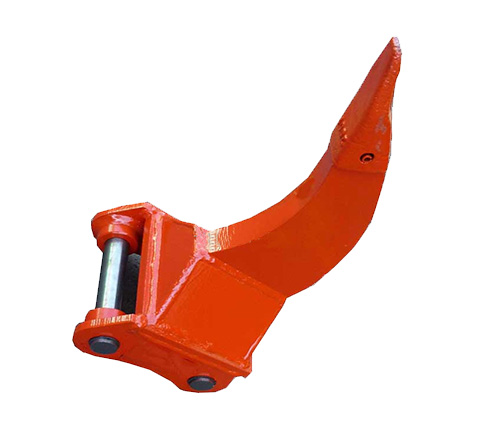

• By concentrating all of your excavator's power in a small space can rip through rock,pavement, or frozen ground. • Get massive penetration and the ability to break up tough materials effortlessly. • Suitable for pin-on and coupler setups. • There are designs for heavy-duty that have more wear components. Are you considering buying one of our excavator rippers?
Product Details
Industry solutions:
| Technical data for ripper: Excavator model or tonnage is needed. | ||||||||||
| Item/Model | Unit | BC02 | BC04 | BC06 | BC08 | BC10 | BC14 | BC17 | BC20 | BC24 |
| pin to pin distance | mm | 265 | 310 | 390 | 465 | 520 | 570 | customized | ||
| overall width | mm | 375 | 420 | 570 | 665 | 740 | 820 | 820 | 1660 | 1800 |
| overall height | mm | 390 | 950 | 1180 | 1260 | 1380 | 1470 | 1520 | customized | |
| pin diameter | mm | 40-50 | 50-55 | 60-70 | 70-80 | 80-90 | 80-90 | 90-110 | customized | |
| dipper width | mm | 150-180 | 180-220 | 200-315 | 300-350 | 360-420 | 360-420 | 400-500 | customized | |
| plate thickness | mm | 50 | 55 | 65 | 80 | 90 | 90 | 90 | 120 | 120 |
| teeth model | name | FR50 | DH150 | DH200 | D85C | 4T5502-2 | PC700 | PC1000 | ||
| weight | kg | 60 | 160 | 245 | 420 | 620 | 775 | 825 | customized | |
| suitable carrier | Ton | 4-6 | 5-9 | 9-16 | 16-23 | 23-30 | 30-39 | 40-49 | 50-64 | 65-90 |
